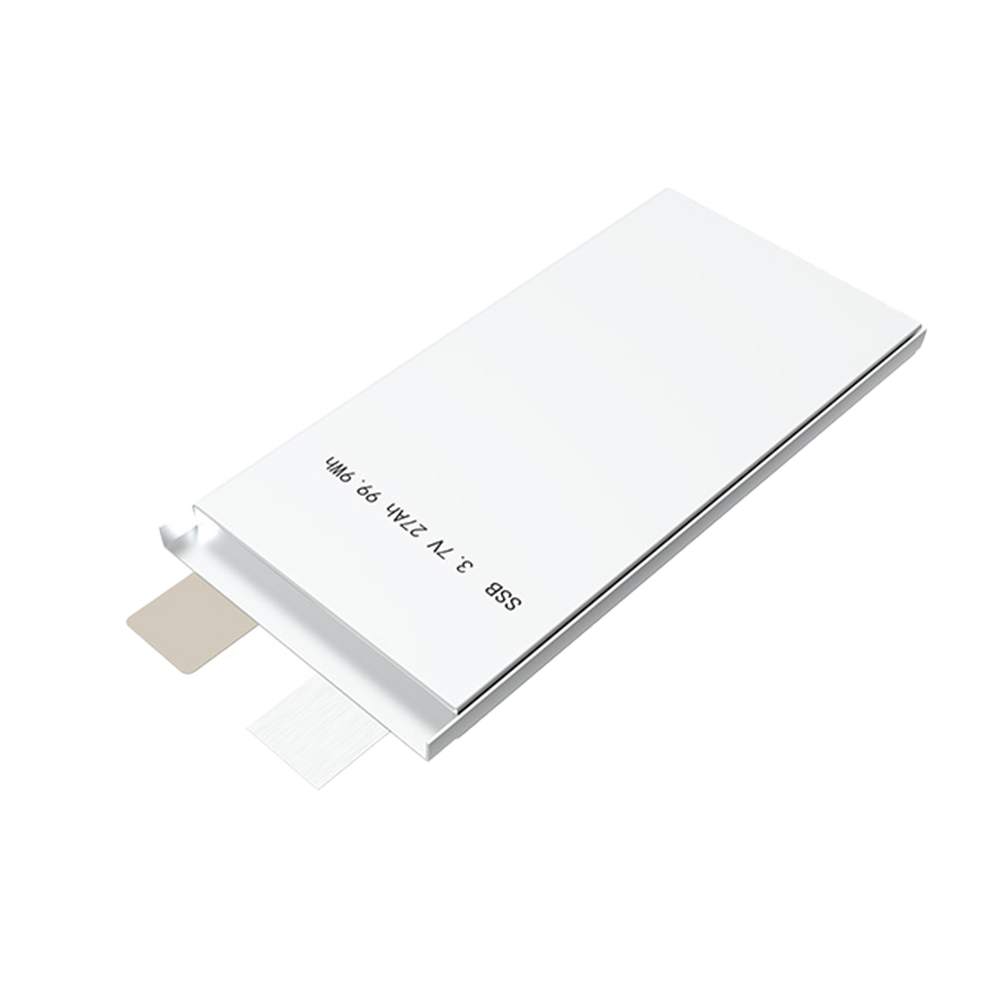

3.7V 27Ah Prismatic Solid State Battery
3.7V 27Ah Prismatic Solid State Battery
Key Features & Specs
| Capacity | 27Ah |
| Voltage | 3.7V |
| Energy Density | ≥272Wh/kg |
| Dimension | 9.8±0.3mm (Thickness) x 87±1mm (Width) x 188±1mm (Length) |
| Weight | 367±5g |
| Cycle Life | ≥800 cycles |
| Operating Temperatures | -20℃ to 55℃ (discharge), 0℃ to 45℃ (charge) |
| Safety | Over-discharge, over-charge, short-circuit, and vibration resistant |
| Discharge Energy | 99.9Wh |
| Internal Resistance | ≤2mΩ |
| Charge Cut-off Voltage | 4.2V |
| Discharge Cut-off Voltage | 2.75V |
| Standard Charge Current | 0.5C |
| Maximum Continuous Charge Current | 1C |
| Maximum Charge Current | 2C |
| Standard Discharge Current | 0.5C |
| Maximum Continuous Discharge Current | 7C |
| Storage Temperature | -20℃ to 45℃ (1 month), -10℃ to 35℃ (6 months) |
Share
Description
Experience superior energy storage with the StateSolid 3.7V 27Ah Prismatic Solid State Battery. Designed with cutting-edge solid-state technology, this battery provides exceptional performance, enhanced safety, and long-lasting durability. Ideal for high-demand applications, it offers high energy density and reliable power. Perfect for electric vehicles, portable electronic devices, and energy storage systems, this battery sets a new standard in efficiency and reliability.
Safety Features:
- No risk of fire or explosion during over-charge, over-discharge, short-circuit, heavy impact, and acupuncture tests.
- Designed to withstand high and low temperature shocks, heating additive tests, and crushing tests.
Applications:
- Electric Vehicles
- Portable Electronic Devices
- Energy Storage Systems
