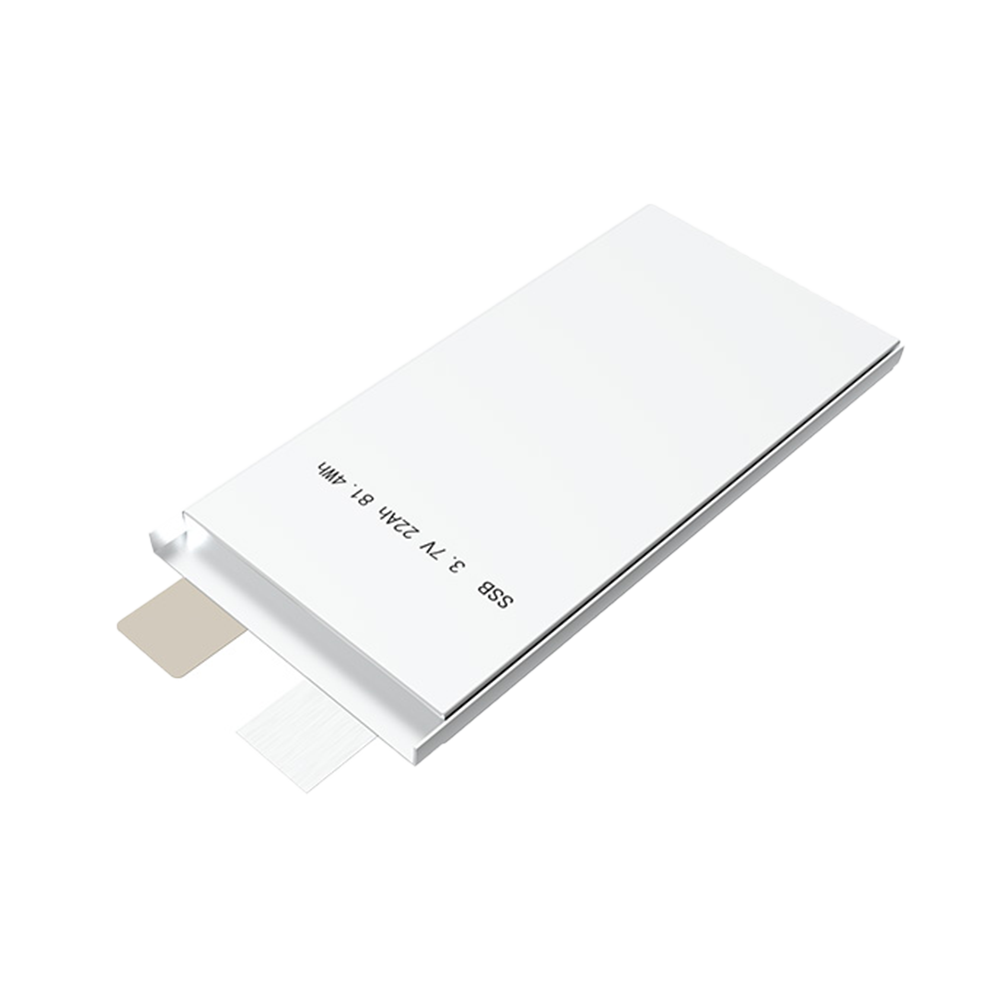

3.7V 22Ah Prismatic Solid State Battery
3.7V 22Ah Prismatic Solid State Battery
Key Features & Specs
| Capacity | 22Ah |
| Voltage | 3.7V |
| Energy Density | ≥270Wh/kg |
| Dimension | 10.3±0.3mm (Thickness) x 72±1mm (Width) x 188±1mm (Length) |
| Weight | 300±5g |
| Cycle Life | ≥800 cycles |
| Operating Temperatures | -20℃ to 55℃ (discharge), 0℃ to 45℃ (charge) |
| Safety | Over-discharge, over-charge, short-circuit, and vibration resistant |
| Discharge Energy | 81.4Wh |
| Internal Resistance | ≤2mΩ |
| Charge Cut-off Voltage | 4.2V |
| Discharge Cut-off Voltage | 2.75V |
| Standard Charge Current | 0.5C |
| Maximum Continuous Charge Current | 1C |
| Maximum Charge Current | 2C |
| Standard Discharge Current | 0.5C |
| Maximum Continuous Discharge Current | 7C |
| Maximum Pulse Discharge Current | 10C (≤10s, 25℃±2℃) |
| Storage Temperature | -20℃ to 45℃ (1 month), -10℃ to 35℃ (6 months) |
Share
Description
Unlock the power of advanced energy storage with the StateSolid 3.7V 22Ah Prismatic Solid State Battery. Built with cutting-edge solid-state technology, this battery offers exceptional performance, safety, and longevity. Ideal for demanding applications, it provides high energy density and reliable power. Perfect for electric vehicles, portable electronic devices, and energy storage systems, this battery exemplifies efficiency and reliability.
Safety Features:
- No risk of fire or explosion during over-charge, over-discharge, short-circuit, heavy impact, and acupuncture tests.
- Designed to withstand high and low temperature shocks, heating additive tests, and crushing tests.
Applications:
- Electric Vehicles
- Portable Electronic Devices
- Energy Storage Systems
