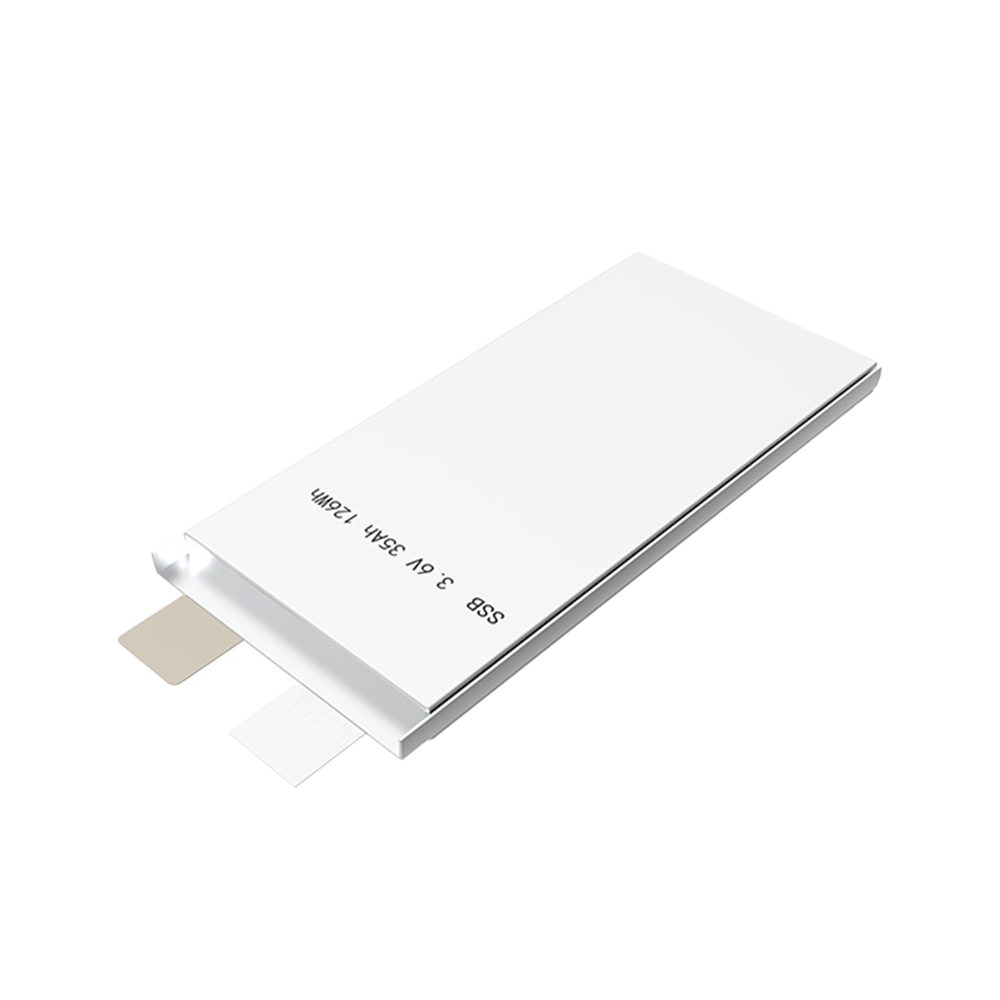

3.6V 35Ah Prismatic Solid State Battery
3.6V 35Ah Prismatic Solid State Battery
Key Features & Specs
| Capacity | 35Ah |
| Voltage | 3.6V |
| Energy Density | ≥315Wh/kg |
| Dimension | 11.0±0.3mm (Thickness) x 88±1mm (Width) x 187±1mm (Length) |
| Weight | 400±10g |
| Cycle Life | ≥500 cycles |
| Operating Temperatures | -20℃ to 60℃ (discharge), 0℃ to 45℃ (charge) |
| Safety | Over-discharge, over-charge, short-circuit, and vibration resistant |
| Discharge Energy | 126Wh |
| Internal Resistance | ≤1mΩ |
| Charge Cut-off Voltage | 4.25V |
| Discharge Cut-off Voltage | 2.75V |
| Standard Charge Current | 0.5C |
| Maximum Charge Current | 2C |
| Standard Discharge Current | 0.5C |
| Maximum Continuous Discharge Current | 3C |
| Maximum Pulse Discharge Current | 10C (≤10s, 25℃±2℃) |
| Storage Temperature | -20℃ to 45℃ (1 month), -10℃ to 35℃ (6 months) |
Share
Description
Discover the superior energy storage capabilities of the StateSolid 3.6V 31Ah Prismatic Solid State Battery. Designed with advanced solid-state technology, this battery offers exceptional performance, enhanced safety, and long-lasting durability. Ideal for a variety of high-demand applications, it provides superior energy density and reliable power. Perfect for electric vehicles, portable electronic devices, and energy storage systems, this battery sets a new standard in efficiency and reliability.
Safety Features:
- No risk of fire or explosion during over-charge, over-discharge, short-circuit, heavy impact, and acupuncture tests.
- Designed to withstand high and low temperature shocks, heating additive tests, and crushing tests.
Applications:
- Electric Vehicles
- Portable Electronic Devices
- Energy Storage Systems
