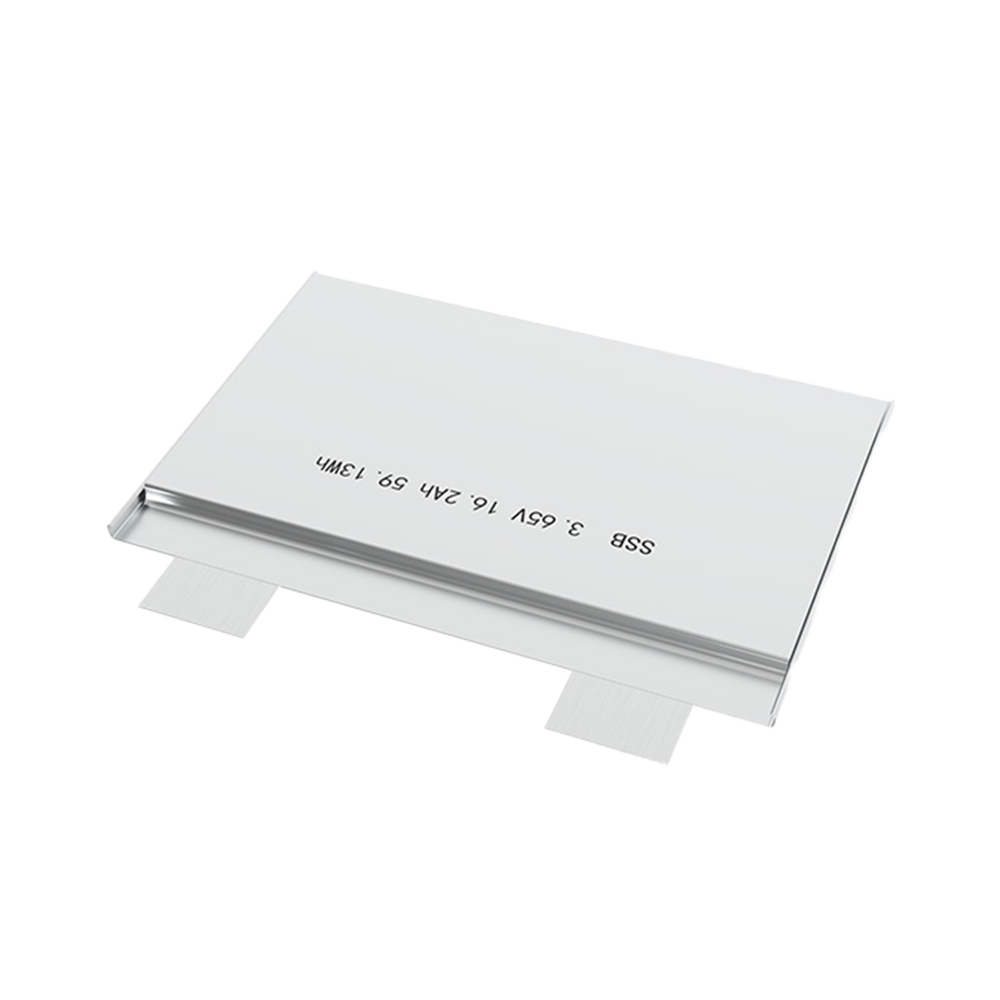

3.65V 16.2Ah Prismatic Solid State Battery
3.65V 16.2Ah Prismatic Solid State Battery
Key Features & Specs
| Capacity | 16.2Ah |
| Voltage | 3.65V |
| Energy Density | ≥242Wh/kg |
| Dimension | 9.1±0.3mm (Thickness) x 148±1mm (Width) x 96±1mm (Length) |
| Weight | 243±5g |
| Cycle Life | ≥1000 cycles |
| Operating Temperatures | -20℃ to 70℃ (discharge), 0℃ to 50℃ (charge) |
| Safety | Over-discharge, over-charge, short-circuit, and vibration resistant |
| Discharge Energy | 59.13Wh |
| Internal Resistance | ≤2mΩ |
| Charge Cut-off Voltage | 4.35V |
| Discharge Cut-off Voltage | 2.75V |
| Standard Charge Current | 0.33C |
| Maximum Charge Current | 1C |
| Standard Discharge Current | 0.33C |
| Maximum Discharge Current | 3C |
| Storage Temperature | -20℃ to 60℃ |
Share
Description
Explore the advanced energy storage capabilities of the StateSolid 3.65V 16.2Ah Prismatic Solid State Battery. Engineered with cutting-edge solid-state technology, this battery offers outstanding performance, enhanced safety, and long-lasting durability. Ideal for a variety of high-demand applications, it provides superior energy density and reliable power. Perfect for electric vehicles, portable electronic devices, and energy storage systems, this battery sets a new standard in efficiency and reliability.
Safety Features:
- No risk of fire or explosion during over-charge, over-discharge, short-circuit, heavy impact, and acupuncture tests.
- Designed to withstand high and low temperature shocks, heating additive tests, and crushing tests.
Applications:
- Electric Vehicles
- Portable Electronic Devices
- Energy Storage Systems
