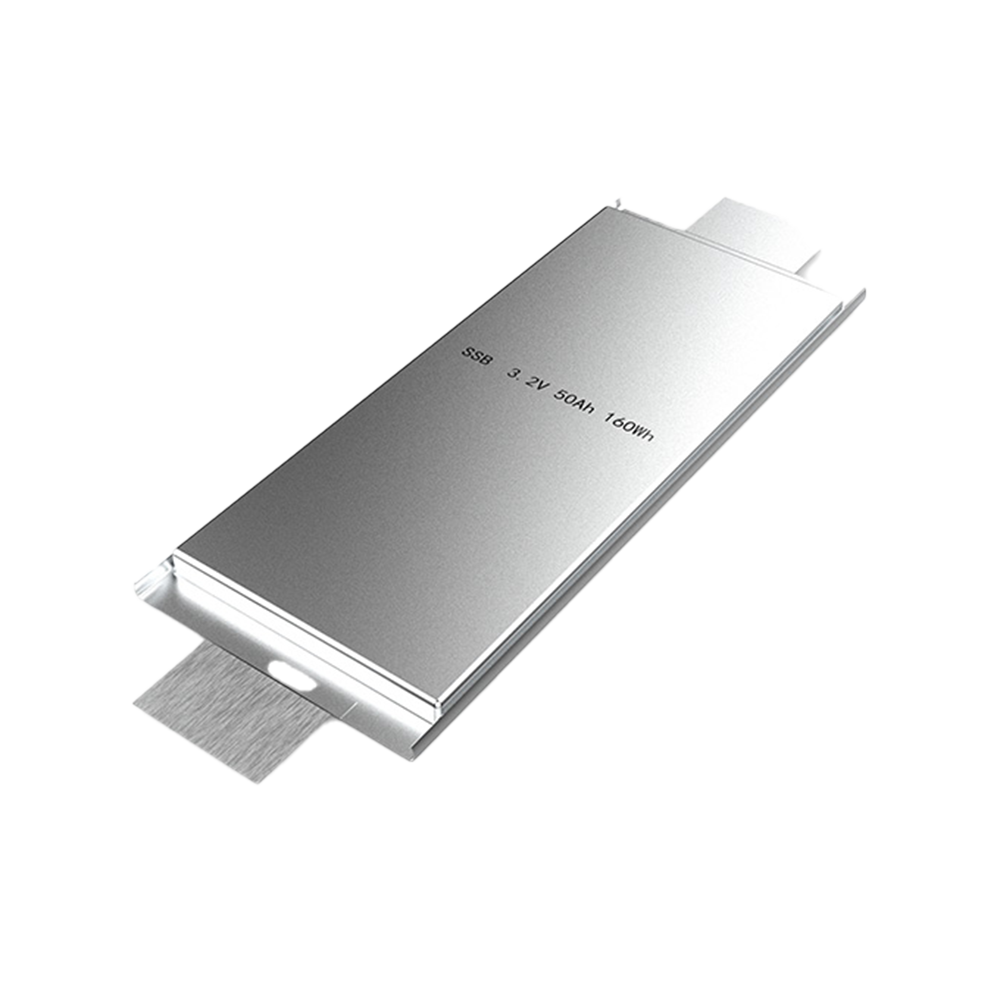

3.2V 50Ah Prismatic Solid State Battery
3.2V 50Ah Prismatic Solid State Battery
Key Features & Specs
| Capacity | 50Ah |
| Voltage | 3.2V |
| Energy Density | ≥175Wh/kg |
| Dimension | 10.8±0.3mm (Thickness) x 125±1mm (Width) x 352±2mm (Length) |
| Weight | 913±20g |
| Cycle Life | ≥4000 cycles |
| Operating Temperatures | -20℃ to 55℃ (discharge), 0℃ to 55℃ (charge) |
| Safety | Over-discharge, over-charge, short-circuit, and vibration resistant |
| Discharge Energy | 160Wh |
| Internal Resistance | ≤1mΩ |
| Charge Cut-off Voltage | 3.65V |
| Discharge Cut-off Voltage | 2.5V |
| Standard Charge Current | 0.5C |
| Maximum Charge Current | 1C |
| Standard Discharge Current | 1C |
| Maximum Continuous Discharge Current | 3C |
| Storage Temperature | -20℃ to 50℃ |
Share
Description
Experience the pinnacle of energy storage with the StateSolid 3.2V 50Ah Prismatic Solid State Battery. Featuring the latest in solid-state technology, this battery offers unmatched performance, enhanced safety, and exceptional durability. Perfect for high-demand applications, it provides high energy density and reliable power. Ideal for electric vehicles, portable electronic devices, and energy storage systems, this battery sets a new standard for efficiency and reliability.
Safety Features:
- No risk of fire or explosion during over-charge, over-discharge, short-circuit, heavy impact, and acupuncture tests.
- Designed to withstand high and low temperature shocks, heating additive tests, and crushing tests.
Applications:
- Electric Vehicles
- Portable Electronic Devices
- Energy Storage Systems
