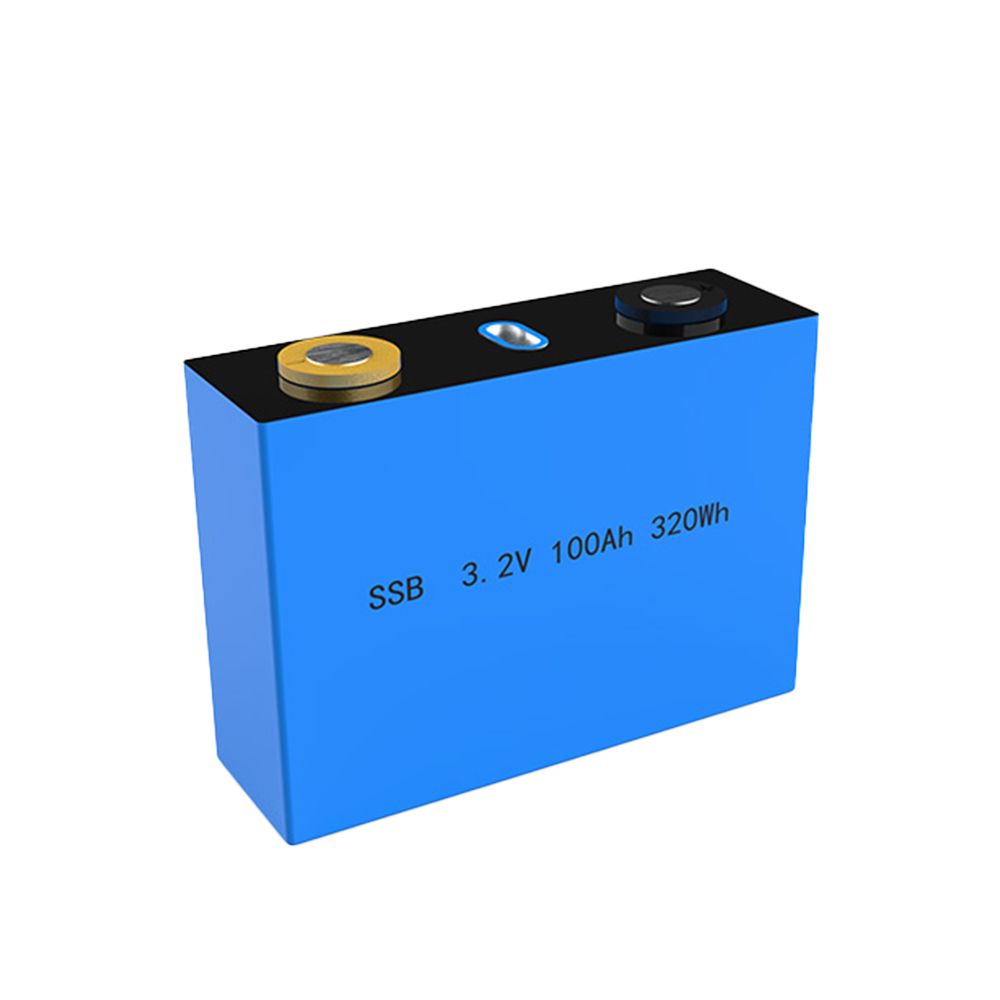

3.2V 100Ah Prismatic Solid State Battery
3.2V 100Ah Prismatic Solid State Battery
Key Features & Specs
| Capacity | 100Ah |
| Voltage | 3.2V |
| Energy Density | ≥165Wh/kg |
| Dimension | 51±1mm (Thickness) x 160±1mm (Width) x 119±1mm (Height) |
| Weight | 1.93±0.15Kg |
| Cycle Life | ≥4000 cycles |
| Operating Temperatures | -20℃ to 65℃ (discharge), 0℃ to 60℃ (charge) |
| Safety | Over-discharge, over-charge, short-circuit, and vibration resistant |
| Discharge Energy | 320Wh |
| Internal Resistance | ≤0.6mΩ |
| Charge Cut-off Voltage | 3.65V |
| Discharge Cut-off Voltage | 2.5V |
| Standard Charge Current | 0.33C |
| Maximum Continuous Charge Current | 0.5C |
| Standard Discharge Current | 0.3C |
| Maximum Continuous Discharge Current | 0.5C |
| Maximum Discharge Current | 1C |
| Storage Temperature | -20℃ to 50℃ |
Share
Description
Unlock the potential of advanced energy storage with the StateSolid 3.2V 100Ah Prismatic Solid State Battery. Utilizing cutting-edge solid-state technology, this battery provides outstanding performance, enhanced safety, and remarkable durability. Ideal for demanding applications, it ensures high energy density and reliable power. Perfect for electric vehicles, portable electronic devices, and energy storage systems, this battery exemplifies efficiency and reliability.
Safety Features:
- No risk of fire or explosion during over-charge, over-discharge, short-circuit, heavy impact, and acupuncture tests.
- Designed to withstand high and low temperature shocks, heating additive tests, and crushing tests.
Applications:
- Electric Vehicles
- Portable Electronic Devices
- Energy Storage Systems
