StateSolid

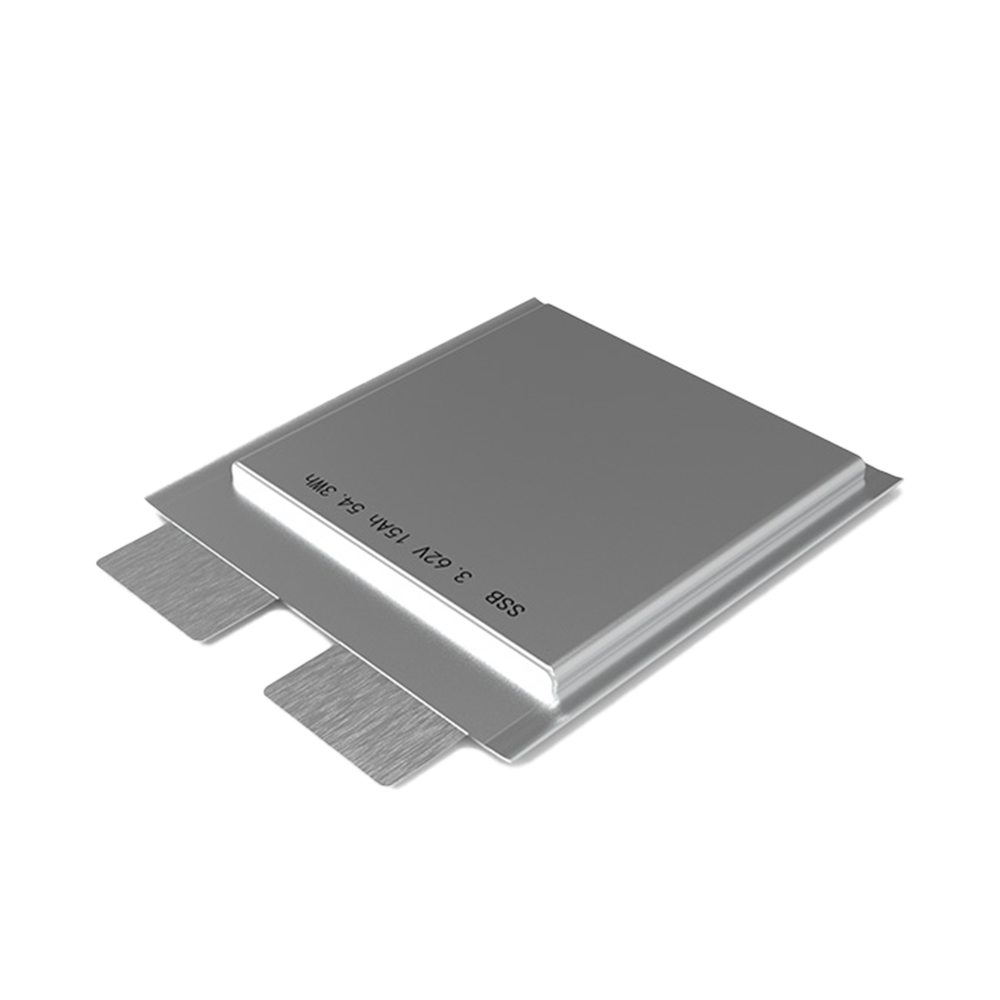

3.62V 15Ah Prismatic Solid State Battery
3.62V 15Ah Prismatic Solid State Battery
Key Features & Specs
| Capacity | 10Ah |
| Voltage | 3.62V |
| Energy Density | ≥265Wh/kg |
| Dimension | 8.5±0.3mm (Thickness) x 120±1mm (Width) x 125±1mm (Length) |
| Weight | 213±5g |
| Cycle Life | ≥1500 cycles |
| Operating Temperatures | -30℃ to 60℃ (discharge), -20℃ to 60℃ (charge) |
| Safety | Over-discharge, over-charge, short-circuit, and vibration resistant |
| Discharge Energy | 54.3Wh |
| Internal Resistance | ≤2mΩ |
| Charge Cut-off Voltage | 4.2V |
| Discharge Cut-off Voltage | 2.7V |
| Standard Charge Current | 0.33C |
| Maximum Charge Current | 3C |
| Standard Discharge Current | 0.33C |
| Maximum Discharge Current | 4C |
| Storage Temperature | -20℃ to 45℃ |
Share
Description
Discover the advanced capabilities of the StateSolid 3.62V 15Ah Prismatic Solid State Battery. Engineered with innovative solid-state technology, this battery delivers exceptional performance, safety, and longevity. Ideal for a variety of high-demand applications, it offers superior energy density and reliable power. Perfect for electric vehicles, portable electronic devices, and energy storage systems, this battery sets a new standard in efficiency and reliability.
Safety Features:
- No risk of fire or explosion during over-charge, over-discharge, short-circuit, heavy impact, and acupuncture tests.
- Designed to withstand high and low temperature shocks, heating additive tests, and crushing tests.
Applications:
- Electric Vehicles
- Portable Electronic Devices
- Energy Storage Systems
