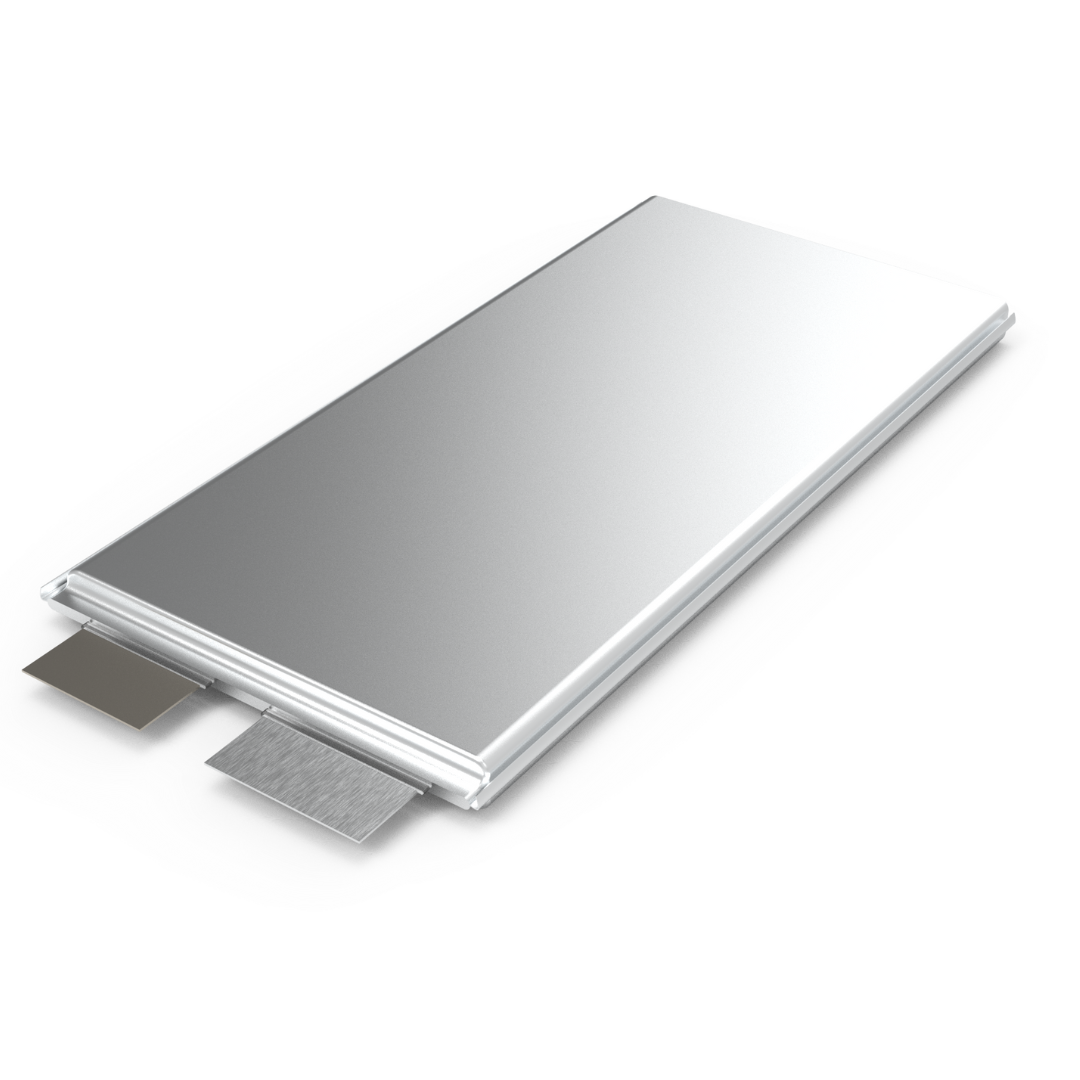

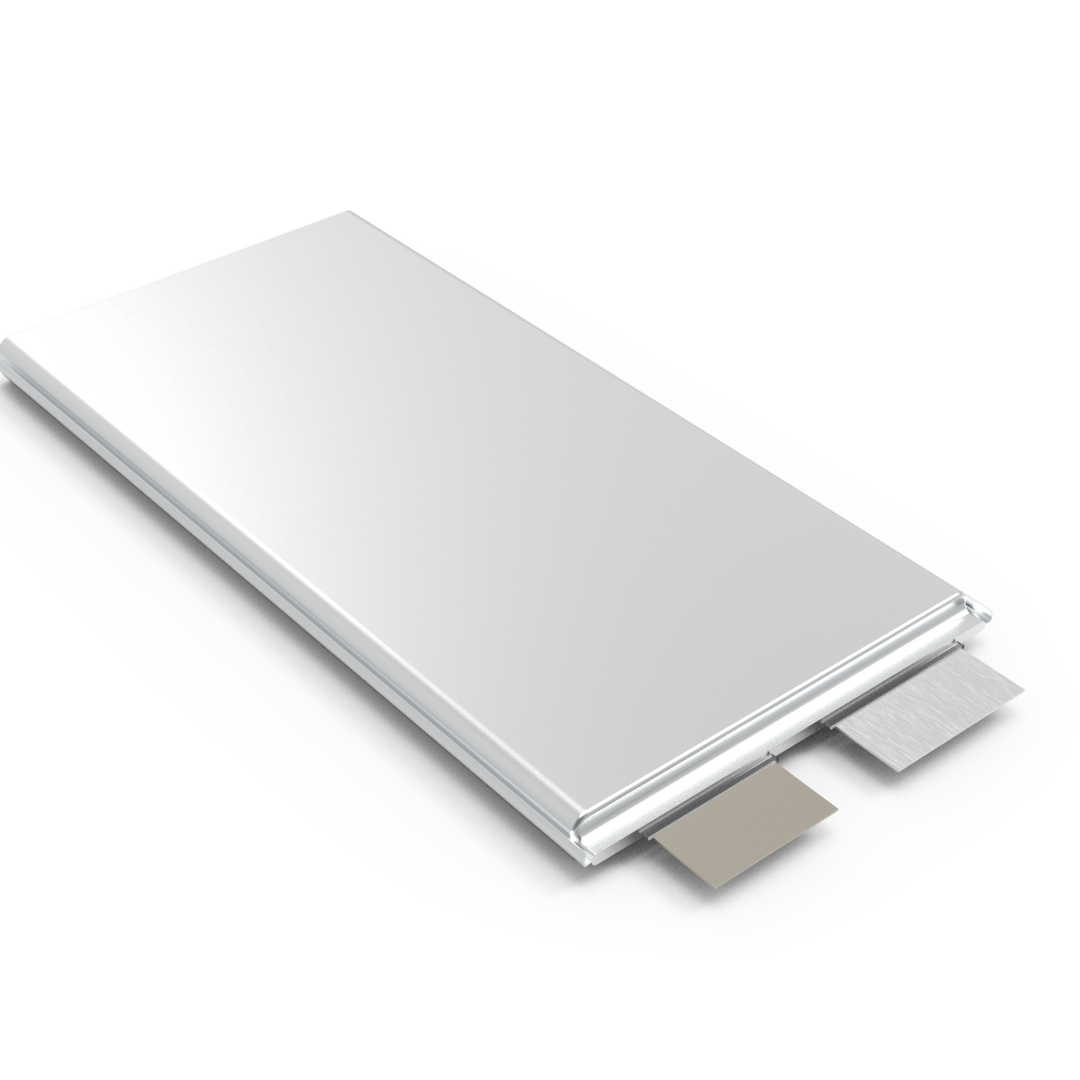

3.85V 37Ah Prismatic Solid State Battery
3.85V 37Ah Prismatic Solid State Battery
Key Features & Specs
| Capacity | 37Ah |
| Voltage | 3.85V |
| Energy Density | ≥258Wh/kg |
| Dimension | 11±0.3mm (Thickness) x 106±1mm (Width) x 210±1mm (Length) |
| Weight | 548±10g |
| Cycle Life | ≥200 cycles |
| Operating Temperatures | -20℃ to 55℃ (discharge), 0℃ to 45℃ (charge) |
| Safety | Over-discharge, over-charge, short-circuit, and vibration resistant |
| Discharge Energy | 142.5Wh |
| Internal Resistance | ≤3mΩ |
| Charge Cut-off Voltage | 4.4V |
| Discharge Cut-off Voltage | 3.0V |
| Continuous Discharge Current | 10C |
| Maximum Pulse Discharge Current | 15C (for <3s) |
| Storage Temperature | -20℃ to 25℃ for up to 1 year |
Share
Description
Embrace the future of energy storage with the StateSolid 3.85V 37Ah Prismatic Solid State Battery. Utilizing cutting-edge solid-state technology, this battery offers unparalleled performance, safety, and longevity. Designed for demanding applications, it provides high energy density and reliable power. Ideal for electric vehicles, portable electronic devices, and energy storage systems, this battery exemplifies the pinnacle of efficiency and reliability.
Safety Features:
- No risk of fire or explosion during over-charge, over-discharge, short-circuit, heavy impact, and acupuncture tests.
- Designed to withstand high and low temperature shocks, heating additive tests, and crushing tests.
Applications:
- Electric Vehicles
- Portable Electronic Devices
- Energy Storage Systems
