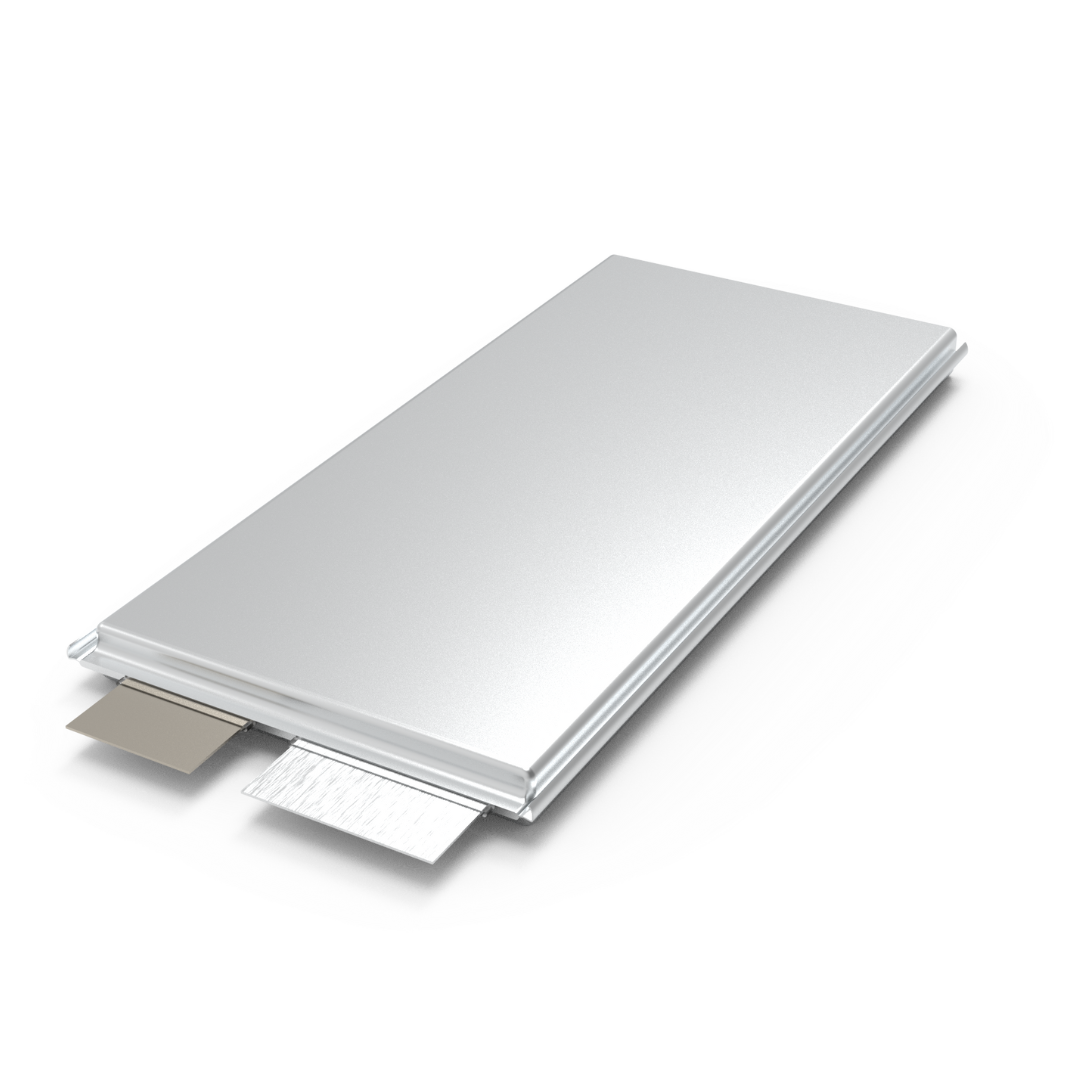

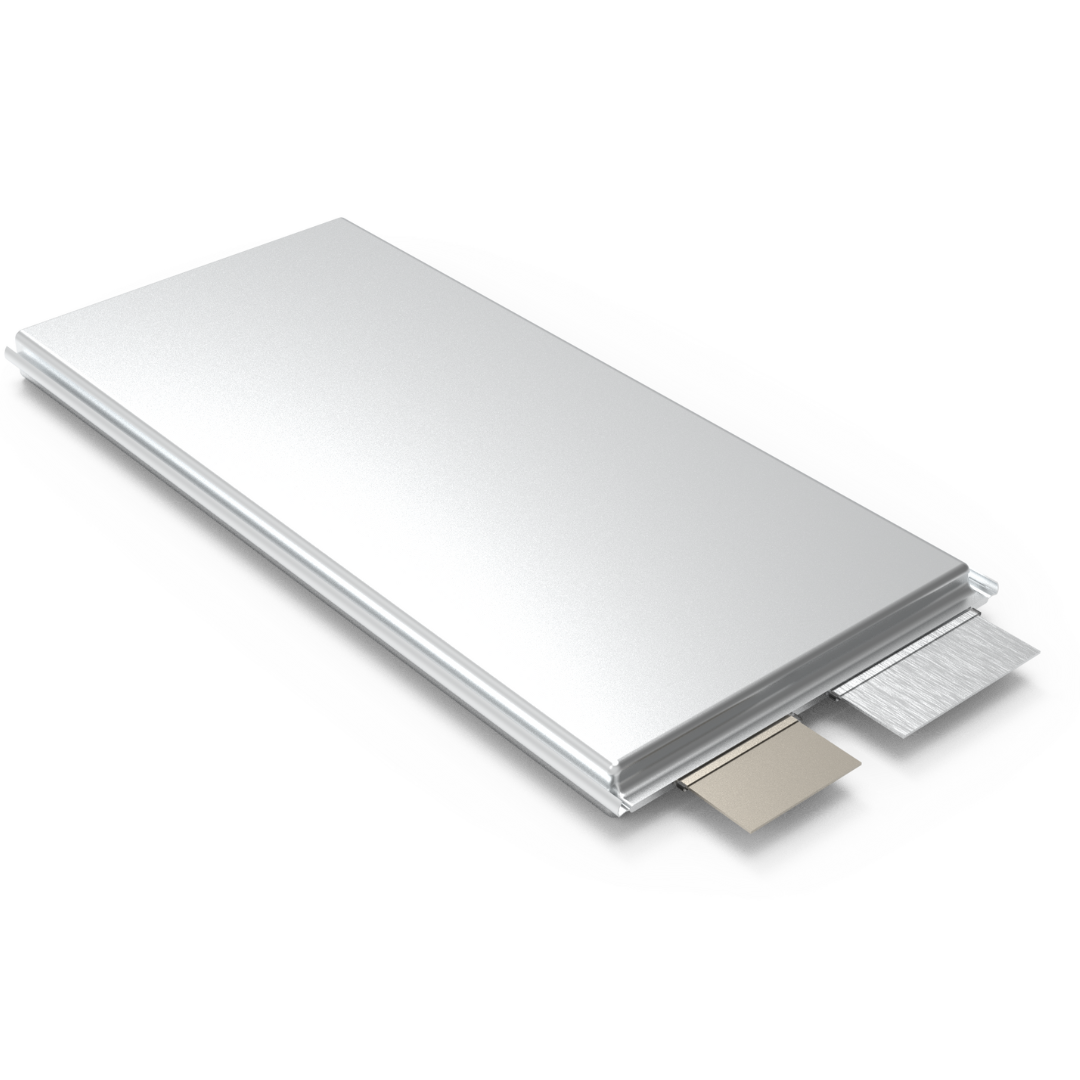

3.85V 30Ah Prismatic Solid State Battery
3.85V 30Ah Prismatic Solid State Battery
Key Features & Specs
| Capacity | 30Ah |
| Voltage | 3.85V |
| Energy Density | ≥253Wh/kg |
| Dimension | 12±0.3mm (Thickness) x 89±1mm (Width) x 190±1mm (Length) |
| Weight | 455±10g |
| Cycle Life | ≥500 cycles |
| Operating Temperatures | -20℃ to 55℃ (discharge), 0℃ to 45℃ (charge) |
| Safety | Over-discharge, over-charge, short-circuit, and vibration resistant |
| Discharge Energy | 115.5Wh |
| Internal Resistance | ≤3mΩ |
| Charge Cut-off Voltage | 4.4V |
| Discharge Cut-off Voltage | 3.0V |
| Continuous Discharge Current | 10C |
| Maximum Pulse Discharge Current | 15C (for <3s) |
| Storage Temperature | -20℃ to 25℃ for up to 1 year |
Share
Description
Step into the future of energy storage with the StateSolid 3.85V 30Ah Prismatic Solid State Battery. Featuring the latest in solid-state technology, this battery delivers exceptional performance, enhanced safety, and outstanding durability. Ideal for demanding applications, it ensures high energy density and reliable power. Perfect for electric vehicles, portable electronic devices, and energy storage systems, this battery sets a new benchmark for efficiency and reliability.
Safety Features:
- No risk of fire or explosion during over-charge, over-discharge, short-circuit, heavy impact, and acupuncture tests.
- Designed to withstand high and low temperature shocks, heating additive tests, and crushing tests.
Applications:
- Electric Vehicles
- Portable Electronic Devices
- Energy Storage Systems
