StateSolid

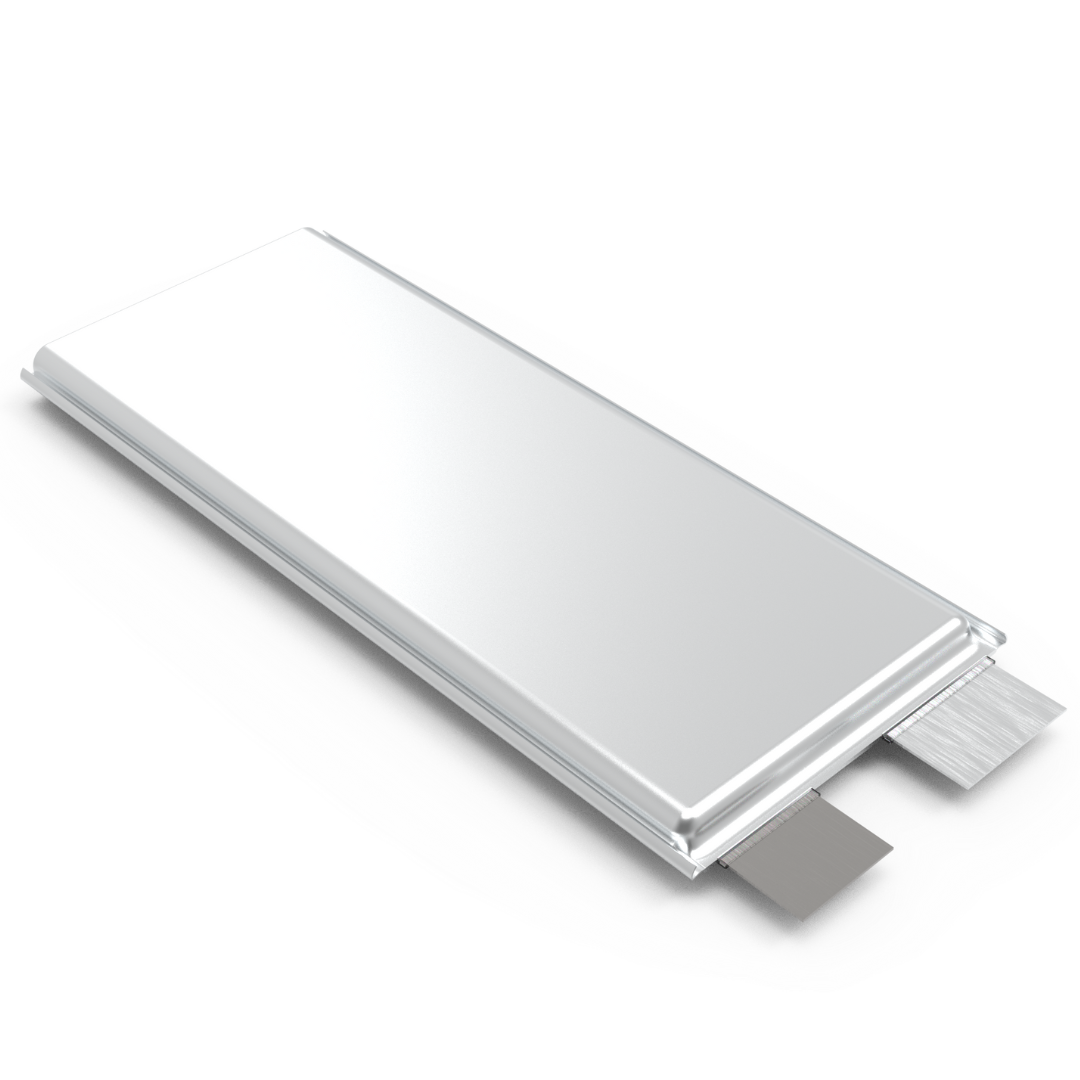

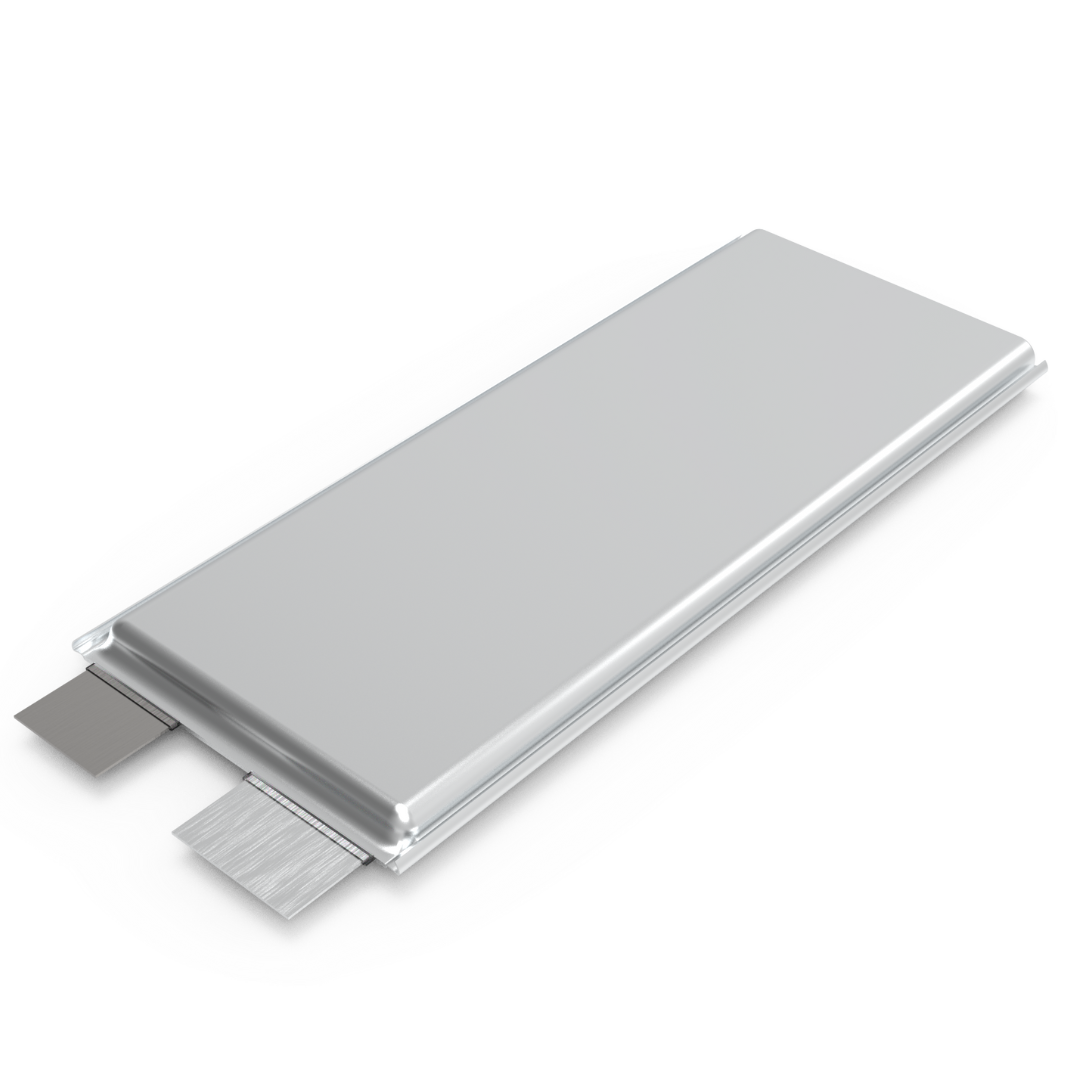

3.7V 23Ah Prismatic Solid State Battery
3.7V 23Ah Prismatic Solid State Battery
Key Features & Specs
| Capacity | 23Ah |
| Voltage | 3.7V |
| Energy Density | ≥285Wh/kg |
| Dimension | 11±0.3mm (Thickness) x 76±1mm (Width) x 180±1mm (Length) |
| Weight | 298±10g |
| Cycle Life | ≥200 cycles |
| Operating Temperatures | -20℃ to 55℃ (discharge), 0℃ to 45℃ (charge) |
| Safety | Over-discharge, over-charge, short-circuit, and vibration resistant |
| Discharge Energy | 85.1Wh |
| Internal Resistance | ≤3mΩ |
| Charge Cut-off Voltage | 4.2V |
| Discharge Cut-off Voltage | 2.5V |
| Continuous Discharge Current | 10C |
| Maximum Pulse Discharge Current | 15C (for <3s) |
| Storage Temperature | -20℃ to 25℃ for up to 1 year |
Share
Description
Unlock superior energy storage with the 3.7V 23Ah Prismatic Solid State Battery. Crafted with cutting-edge solid-state technology, this battery offers exceptional performance, safety, and durability. Perfect for demanding applications, it ensures high energy density and long-term reliability. Ideal for electric vehicles, portable devices, and energy storage systems, this battery sets a new standard in power efficiency and safety.
Safety Features:
- No risk of fire or explosion during over-charge, over-discharge, short-circuit, heavy impact, and acupuncture tests.
- Designed to withstand high and low temperature shocks, heating additive tests, and crushing tests.
Applications:
- Electric Vehicles
- Portable Electronic Devices
- Energy Storage Systems
