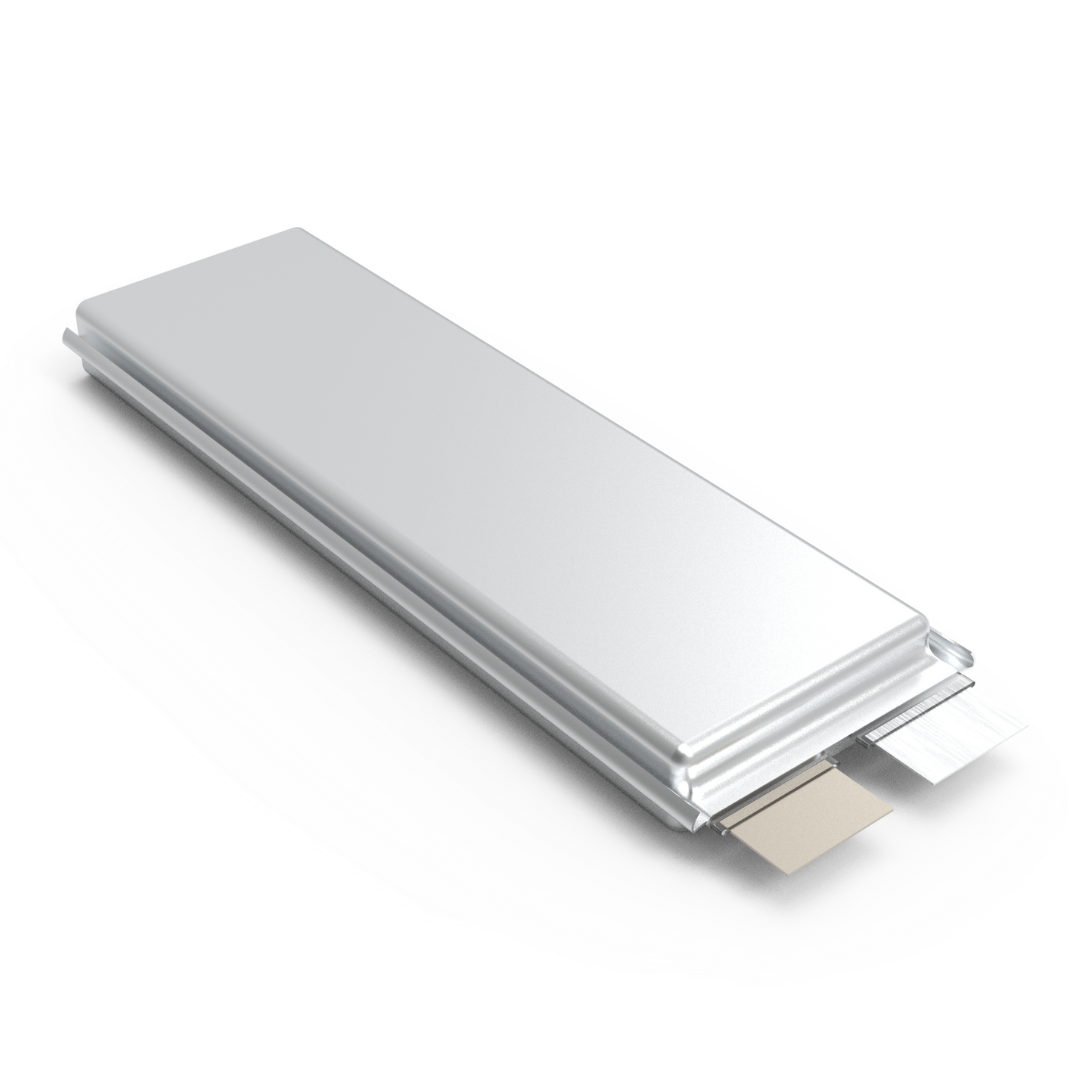

3.7V 10Ah Prismatic Solid State Battery
3.7V 10Ah Prismatic Solid State Battery
Key Features & Specs
| Capacity | 10Ah |
| Voltage | 3.7V |
| Energy Density | ≥272Wh/kg |
| Dimension | 11±0.3mm (Thickness) x 43±1mm (Width) x 126±1mm (Length) |
| Weight | 136±5g |
| Cycle Life | ≥200 cycles |
| Operating Temperatures | -20℃ to 55℃ (discharge), 0℃ to 45℃ (charge) |
| Safety | Over-discharge, over-charge, short-circuit, and vibration resistant |
| Discharge Energy | 37Wh |
| Internal Resistance | ≤2mΩ |
| Charge Cut-off Voltage | 4.2V |
| Discharge Cut-off Voltage | 3.0V |
| Continuous Discharge Current | 10C |
| Maximum Pulse Discharge Current | 15C (for <3s) |
| Storage Temperature | -20℃ to 25℃ for up to 1 year |
Share
Description
Discover the advanced energy storage solution with the StateSolid 3.7V 10Ah Prismatic Solid State Battery. Designed with state-of-the-art technology, this battery offers superior performance, safety, and durability. Perfect for a wide range of high-demand applications, it provides exceptional energy density and reliability. Whether for electric vehicles, portable electronic devices, or energy storage systems, this solid-state battery exceeds expectations.
Safety Features:
- No risk of fire or explosion during over-charge, over-discharge, short-circuit, heavy impact, and acupuncture tests.
- Designed to withstand high and low temperature shocks, heating additive tests, and crushing tests.
Applications:
- Electric Vehicles
- Portable Electronic Devices
- Energy Storage Systems
